HS506

HS506

MSRP   $ 294.11

Share to Download User Manual Manual

Choose Color

RED

Choose Color

Choose Color

RED

Reticle



Where to Buy

- OVERVIEW -

Item Dimensions

The HS506 is a 30mm optical sight designed for rifle and carbine applications. Features include Shake Awake, 12 brightness settings, Holosun’s Super LED with up to 50k hour battery life, Multi-Reticle System, Cantilever Mount, and Flip-up Lens Caps.

In the Box

  • T10 L Key
  • Flip-backs
  • User Manual
  • CR2032 Battery
  • Length Cloth

In the Box

  • T10 L Key
  • Flip-backs
  • User Manual
  • CR2032 Battery
  • Length Cloth

The HS506 is a 30mm optical sight designed for rifle and carbine applications. Features include Shake Awake, 12 brightness settings, Holosun’s Super LED with up to 50k hour battery life, Multi-Reticle System, Cantilever Mount, and Flip-up Lens Caps.

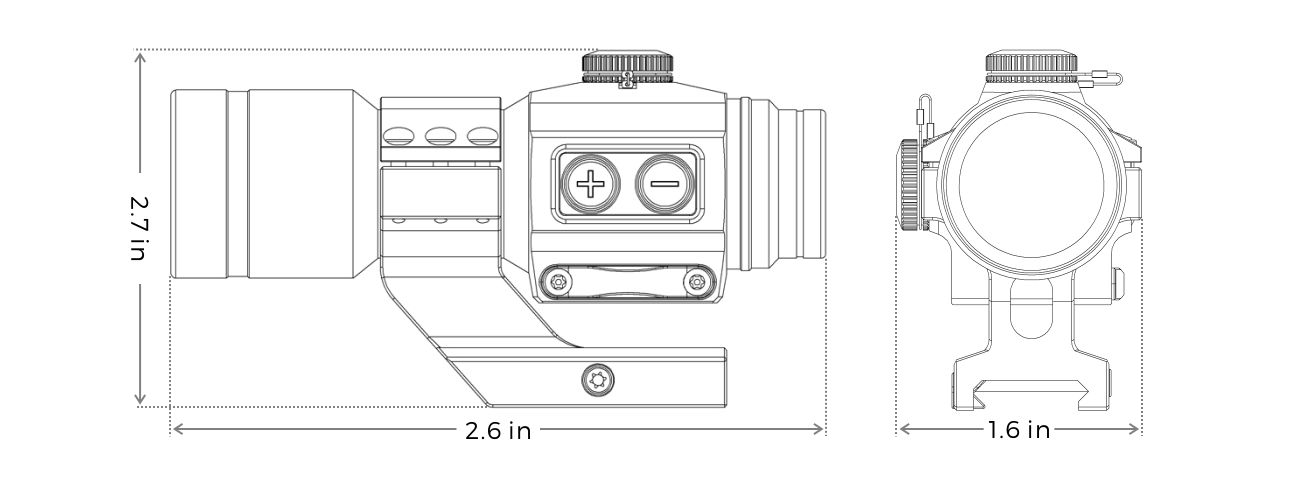

Items Dimensions (in inches)

- TECH & FEATURES -

  • Shake Awake™

  • Multiple Reticle System

  • Multilayer Reflective Glass

  • MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle

  • Up to 50,000 Hours Battery Life (Setting 6)

  • 12 Brightness Setting: 10 DL & 2 NV Compatible

  • Parallax-free & Unlimited Eye Relief

  • 1.535” Torx Mount

More Details

- SPECIFICATION -

OPTICAL DATA

  • Reticle2 MOA Dot & 65 MOA Circle
  • Light Wavelength650nm
  • Reticle ColorRed
  • Parallax FreeYes
  • Unlimited Eye ReliefYes
  • Magnification1x
  • Multi-CoatingsYes

ELECTRONIC DATA

  • Power SourceBattery
  • Battery TypeCR2032
  • Battery Life (Hours)50000
  • Brightness Setting10 DL&2 NV

PHYSICAL DATA

  • Window Size30mm Diameter
  • Dimension (in)5.2×1.9×2
  • Weight (oz)6.17

MECHANICAL DATA

  • Housing Material6061 T6 Aluminum
  • Surface FinishMAO
  • Adjustment per Click0.5 MOA
  • W&E Travel Range±50 MOA

ENVIRONMENT DATA

  • Storage Temperature-40℃~70℃
  • Working Temperature-30℃~60℃
  • SubmersionIP67
  • Vibration1000G
