IRIS-GR4

MSRP $1176.46

- Overview -

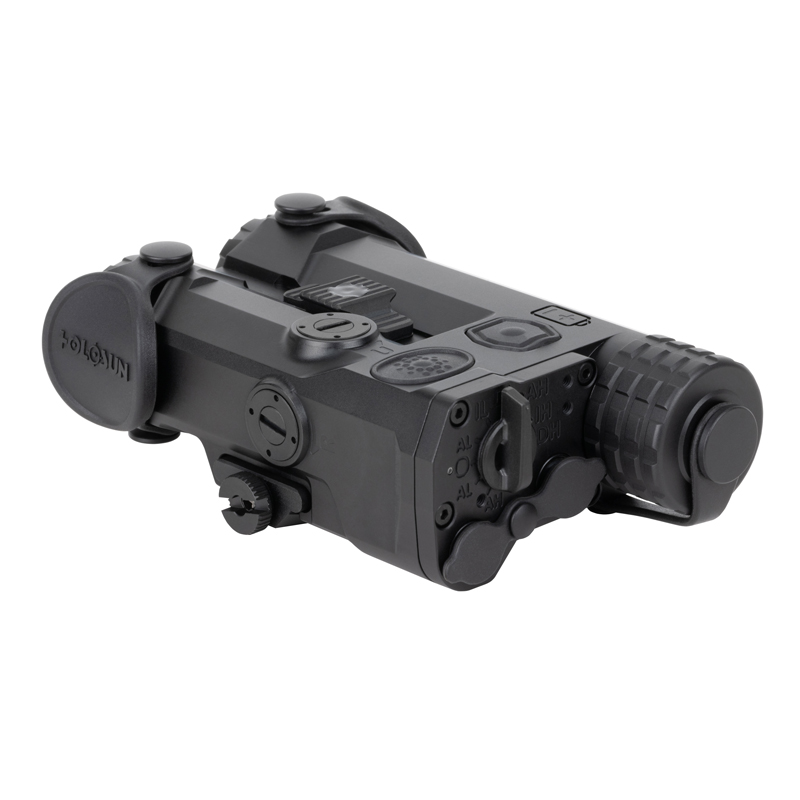

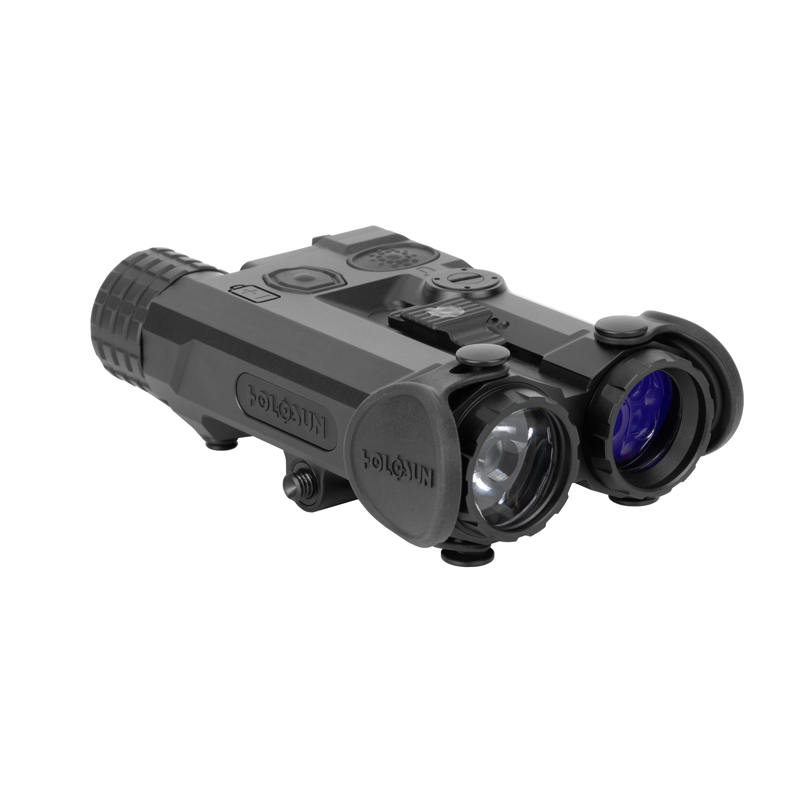

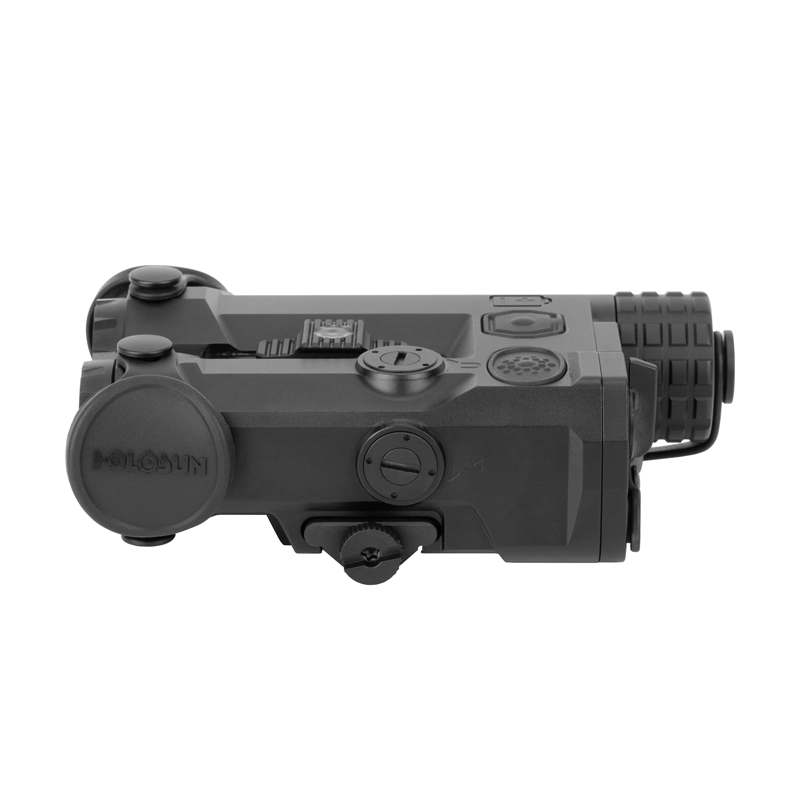

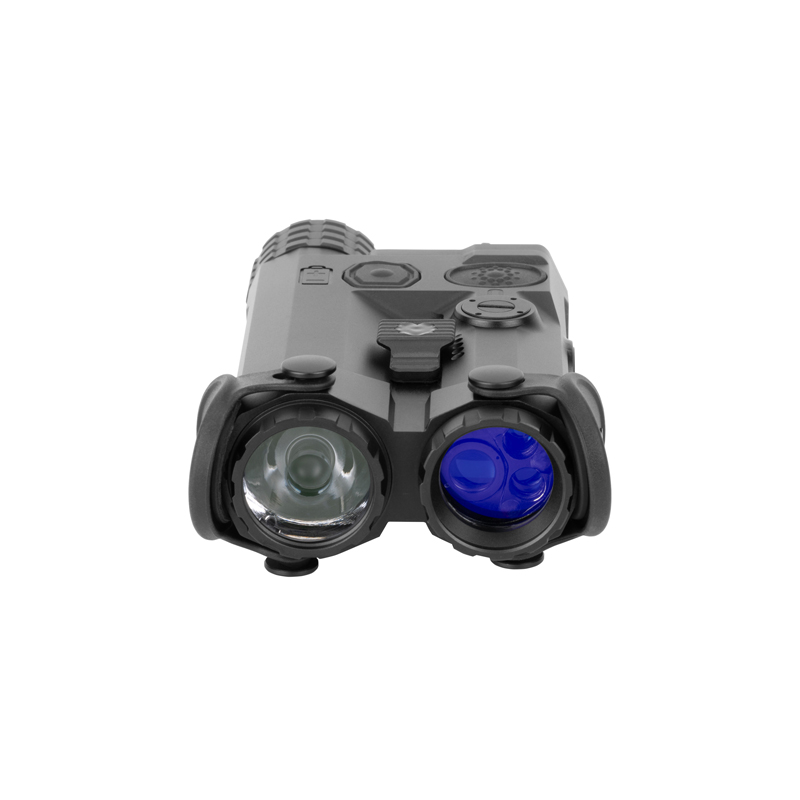

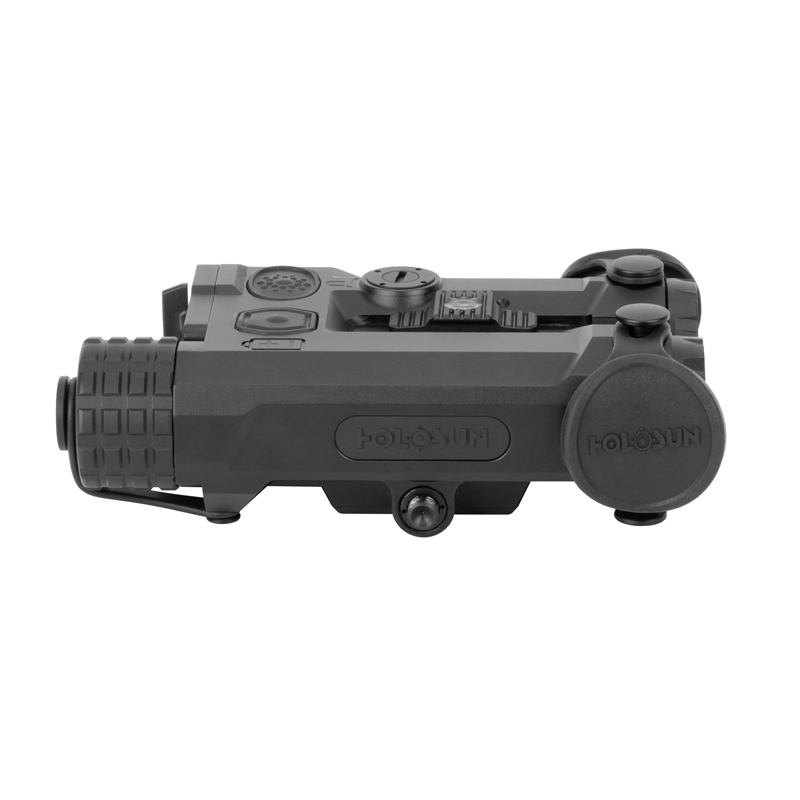

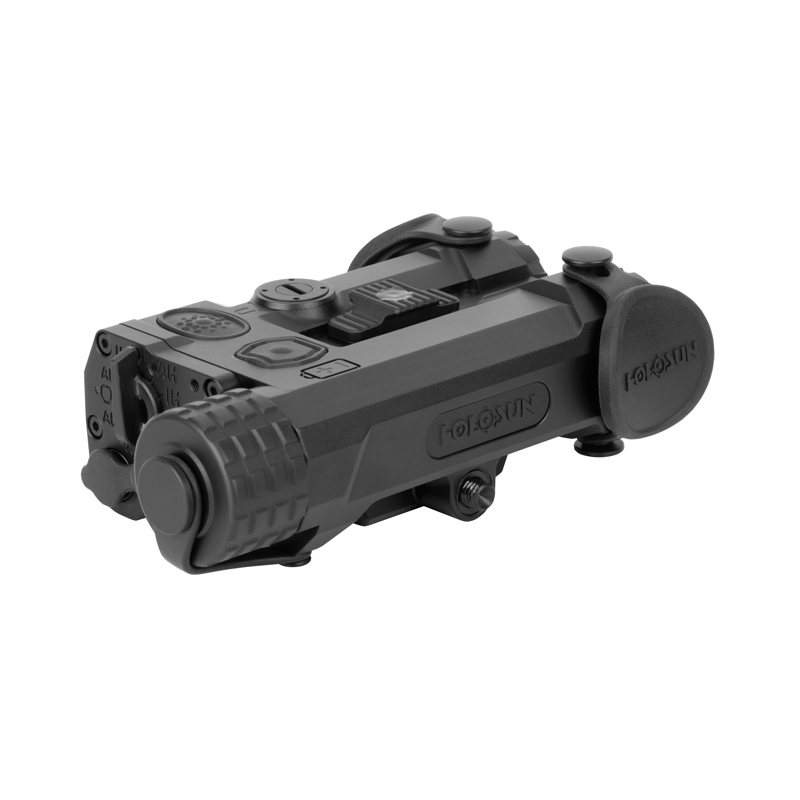

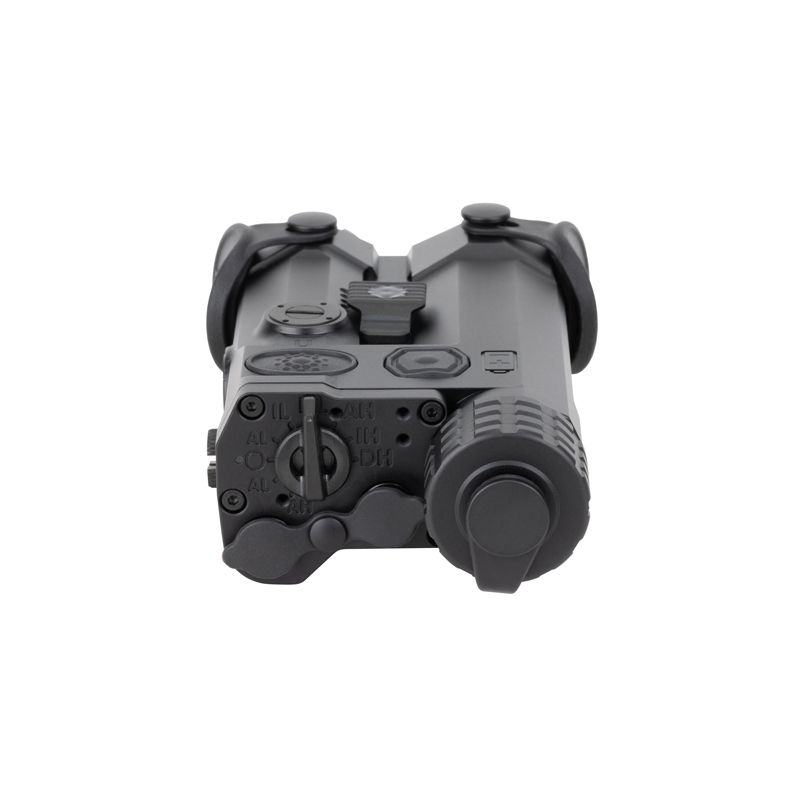

IRIS 4 is a quad-function multi-laser device with a redesigned 7075 aluminum housing that is 43% lighter, 29% lower, and 28% narrower than the previous model. IRIS 4 now boasts a powerful 45mW infrared (IR) illuminator and a 1,000 lumen / 25,000 candela white light along with a VIS (visible) laser pointer and infrared (IR) laser pointer. Additionally, the IRIS 4 now features independent fire buttons for ambidextrous activation of momentary or constant ON functions of the lasers and white light. IRIS 4 also features an updated, rear-facing power and mode selector switch with improved ergonomics and feel. An all-new, three-button remote activation switch is included and features a VIS override function. IRIS 4 is available with either a green or red VIS pointer.

Items Dimensions (in inches)

In the Box

  • 1x IRIS-GR4
  • 1x Triple Button Pressure Pad

- Specification -

  • IR Illuminator: 60mW VCSEL
  • • IR Laser: 0.7mW VCSEL
  • • Green / Red Laser: 5mW
  • • LED Light: 1,000 Lumens / 25,000 Candela
  • • Battery Type: 2x CR123A / 18650
  • • Weight: 8.5oz

ELECTRONIC SPECS

Power Source Battery
Battery Type 18650
Battery Life (Hours) Up to modes
Thermal Modes N/A
Digital Modes N/A
Video Recording N/A
Screen Refresh Rate N/A
Digital Screen N/A
Brightness Setting Up to modes

PHYSICAL SPECS

Window Size N/A
Dimension (in) 4.2×2.3×1.4
Weight (oz) 8.5

MECHANICAL SPECS

Housing Material 7075 T6 Aluminum
Surface Finish Hard Anodize
Adjustment per Click 0.5 MOA
W&E Travel Range ±50 MOA

ENVIRONMENT SPECS

Storage Temperature -40℃~70℃
Working Temperature -20℃~51℃
Submersion IPX8
Vibration 1000G

ILLUMINATOR SPECS

White LED Candela 25000
Laser & Illuminator Type Dual Laser & Dual Illuminator
White LED Output 1000 Lumens
IR Illuminator Class Class 1
IR Illuminator Output VCSEL 60mW
IR Pointer Class Class 1
IR Pointer Output 0.1mw(low)/0.7mw(high)
Visible Laser Class 3R
Visible Laser Output 1mw(low)/5mw(high)
