IRIS-RD3

MSRP $1058.81

- Overview -

The Holosun IRIS-RD3 is a professional-grade, triple-function laser and illumination device engineered to deliver maximum capability in an ultra-compact footprint. Constructed from redesigned 7075-T6 aluminum, the IRIS-RD3 is 43% lighter and 20% lower in profile than the LS321 series, providing enhanced ergonomics while maintaining exceptional durability and operational reliability.


This advanced system integrates co-aligned visible red and infrared (IR) aiming lasers, allowing precise zeroing during daylight using the visible laser, with seamless transition to IR functionality for night operations. A high-output 60mW VCSEL IR illuminator delivers outstanding performance in low-light and no-light environments when used in conjunction with night vision devices. A top-mounted beam adjustment slider enables fast, glove-friendly tuning of the IR illuminator’s beam from wide to narrow for optimal performance across varying engagement distances.

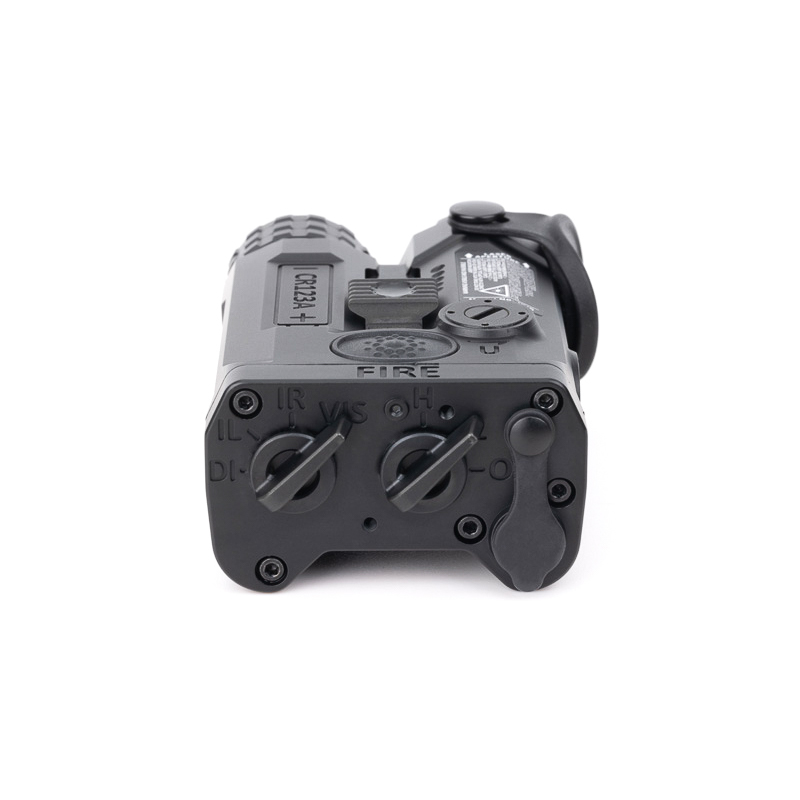

Additional features include a centrally positioned fire button for ambidextrous activation, dual rear-facing selectors for intuitive power and mode control, and a low-profile two-button remote switch with Crane plug and VIS override. The IRIS-RD3 offers dependable performance and advanced functionality in a rugged, precision-built compact platform.



Items Dimensions (in inches)

In the Box

  • 1x IRIS-RD2
  • 1x Dual Button Pressure Switch

- Specification -

  • SPECS:
  • • IR Illuminator: 60mW VCSEL
  • • IR Laser: 0.7mW VCSEL
  • • Green/Red Laser: 5mW
  • • Battery Type: CR123A
  • • Weight: 6.4oz
  • • Windage & Elevation Adjustment: 0.5 MOA Per Click
  • • IR Illuminator Beam Pattern: 15-150 MRAD
  • • Size: 3.2 x 1.97 x 1.34

ELECTRONIC SPECS

Power Source Battery
Battery Type CR123A
Battery Life (Hours) Up to modes
Thermal Modes N/A
Digital Modes N/A
Video Recording N/A
Screen Refresh Rate N/A
Digital Screen N/A
Brightness Setting Up to modes

PHYSICAL SPECS

Window Size 0.58x0.77
Dimension (in) 3.2x1.97x1.34
Weight (oz) 6.4

MECHANICAL SPECS

Housing Material 7075 T6 Aluminum
Surface Finish Hard Anodize
Adjustment per Click 0.5 MOA
W&E Travel Range ±50 MOA

ENVIRONMENT SPECS

Storage Temperature -40℃~70℃
Working Temperature -30℃~60℃
Submersion IPX8
Vibration 1000G

ILLUMINATOR SPECS

White LED Candela N/A
Laser & Illuminator Type Dual Laser & IR Illuminator
White LED Output N/A
IR Illuminator Class Class 1
IR Illuminator Output VCSEL 60mW
IR Pointer Class Class 1
IR Pointer Output <0.7mw
Visible Laser Class 3R
Visible Laser Output <5mW
